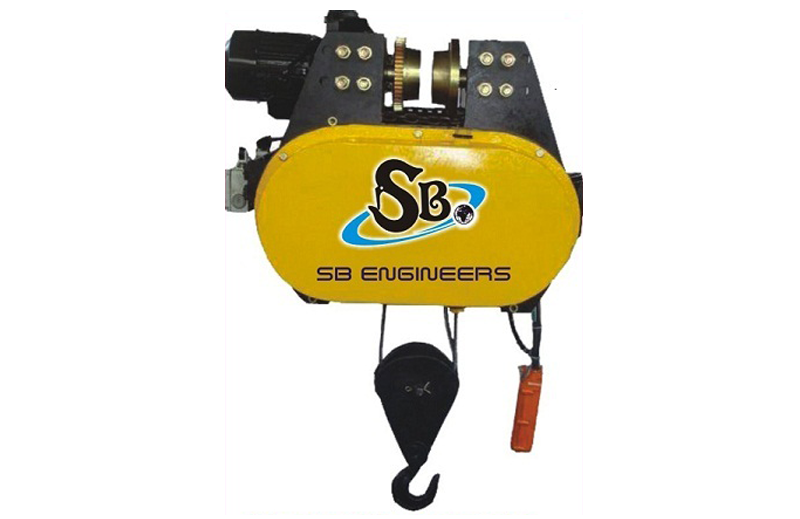

Electric Wire rope Hoist

NOTE : Special requirements like higher lift, low headroom, compact dimensions hoist will be offered on request. We reserve the right to changes any technical specifications without prior notice.

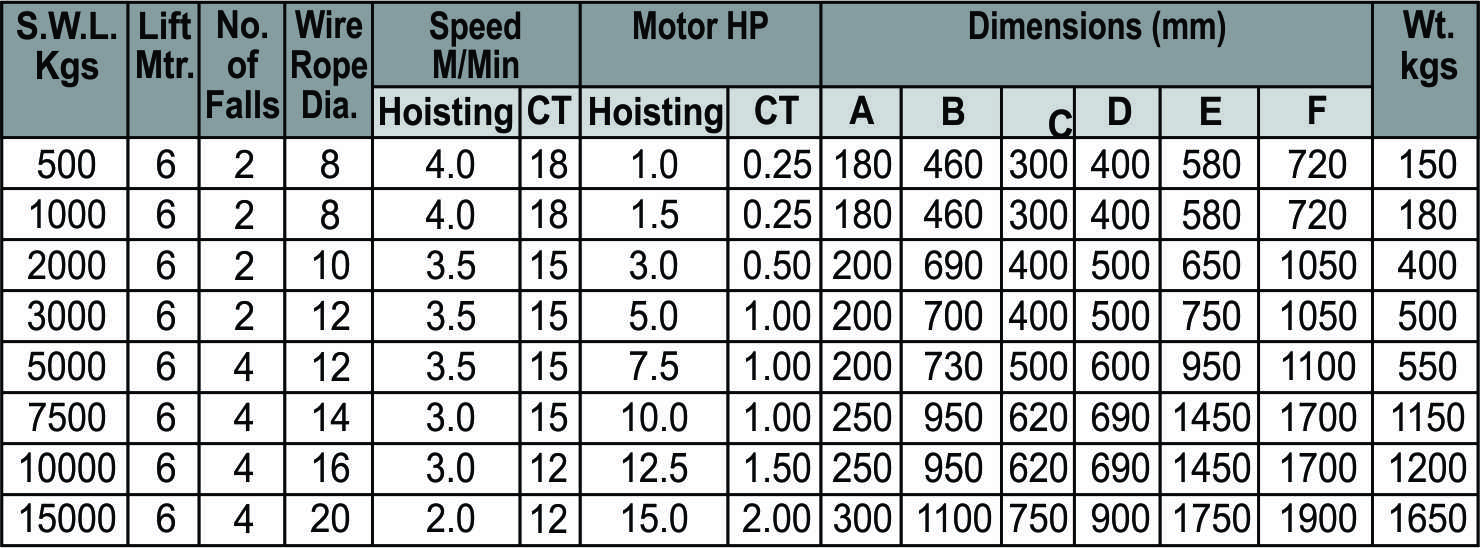

  • TECHNICALS PECIFICATIONS OF “SB” WIRE ROPE HOISTS
  • SALIENT FEATURES
  • Capacities from 250 Kgs to 15000 Kgs.
  • Rugged construction conforming to IS 3938
  • Shafts mounted on anti friction bearings
  • Totally enclosed gearbox with precision machine cut gears and pinions
  • Rope drums made from seamless pipe
  • Assembly facilitating easy maintenance
  • TEFC squirrel cage motors with high starting torque to work on 415V, 3Ph, 50Hz power supply
  • Disc type/Shoe type Electromagnetic brakes for hoisting & cross travel motions
  • Limit switches for upper and lower limits for safe operation
  • Safety latches on hook
  • Hook supporting on thrust bearings for 360 Degree swivel
  • Micro speed for hoisting and cross travel shall be provided if required
  • Overload protection device if required
  • Radio Remote Control through operation if required
  • Flame proof hoist (FLP) also manufacture

Electric Wire rope Hoist
